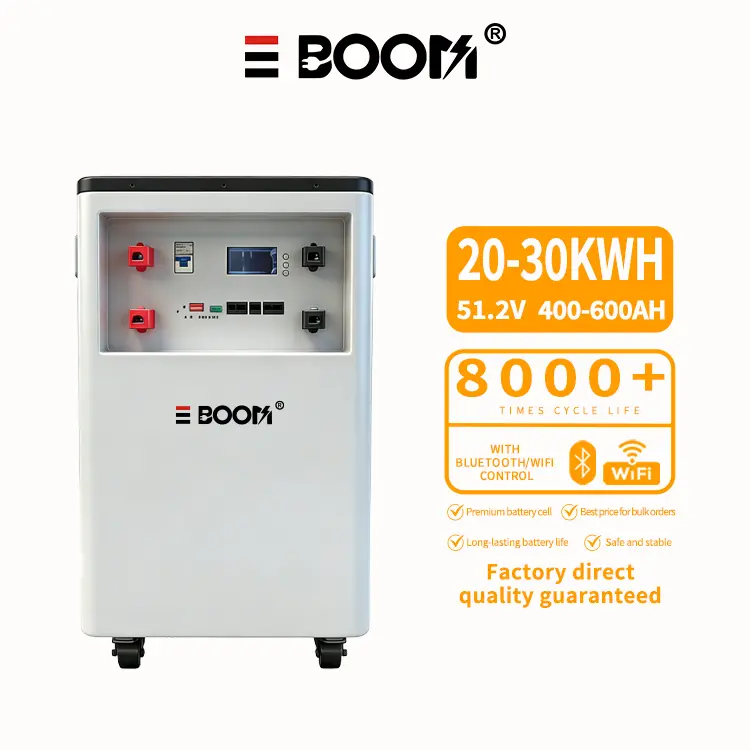

| Caster-Mounted Energy Storage Lithium Batteries | |||
|---|---|---|---|
| Model | LXL3-20 | LXL3-25 | LXL3-30 |
| Cell Type | Lithium Iron Phosphate (16S2P) | ||
| Standard Voltage | 51.2V(DC) | ||
| Voltage Range | 46V-58.4V(DC) | ||
| Cell Capacity | 400Ah | 500Ah | 600Ah |
| Installed Capacity | 20Kwh | 25Kwh | 30Kwh |

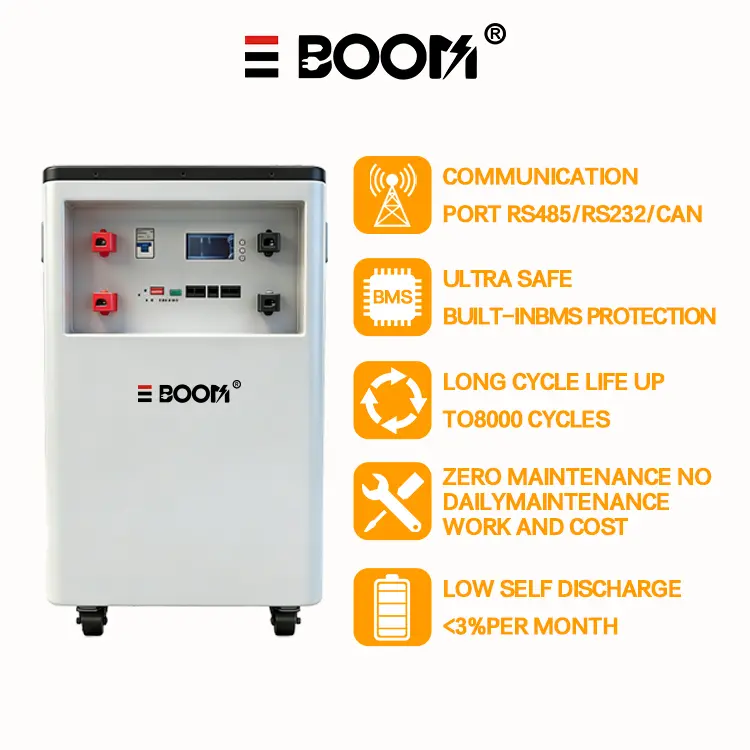

| Communication Type | RS232 / RS485 / CAN / Bluetooth | ||
| BMS Features | Overcharge / Overdischarge / Short circuit / Overcurrent / Overtemperature protection | ||
| Max Charging Current | ≤150A (Customization Available) | ||
| Max Discharging Current | ≤200A (Customization Available) | ||
| Operating Temp | Charging: 0 to 55℃ | Discharging: -20 to 60℃ | ||
| Cycle Life | ≥8,000 cycles @ 85% DOD & 25℃ | ||
| Warranty | 10 Years | ||
| Dimensions | 850 * 650 * 430mm | ||
| Weight | 218KG | 244KG | |
| Certifications | UN38.3, IEC, CE, MSDS | ||
| IP Rating | IP54 | ||
| Parallel Support | Up to 16 units in parallel | ||

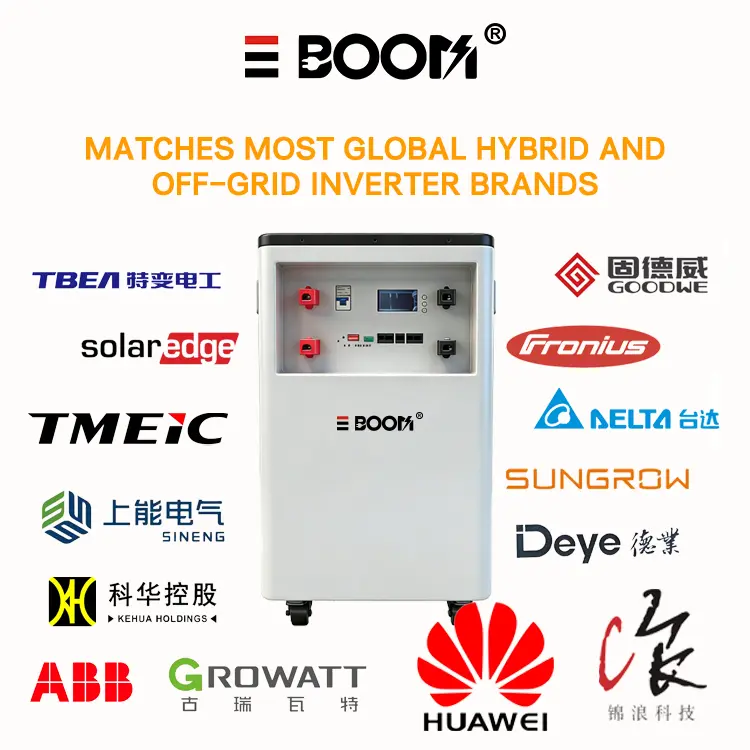

| Compatible Inverters | Sungrow, Ginlong Solis, Growatt, GoodWe, Deye, Solplanet (Aiswei), Hypontech, Livoltek, MUST Solar, Maysun, Sunways, Sunforce, RCT Power, Chint Power, SAJ, KSTAR, Sinexcel, SINENG | ||
The narrative is one of stewardship and responsibility. The grid is often powered by "peaker plants"—inefficient, dirty fossil fuel power stations that are fired up during times of high demand. By using stored energy during these peak times, users are actively reducing the demand for these polluting plants. We position the battery as a tool for carbon reduction. It’s not just about saving money; it’s about saving the planet.
Focusing on the legacy left for future generations, we talk about "clean energy cycles" and "sustainable living." This approach suggests that every kilowatt-hour stored is a vote for a cleaner future. It transforms the act of charging a battery into a moral imperative. Energy storage is the final piece of the puzzle in creating a truly net-zero home—living lightly on the earth, harvesting the abundance of nature without depleting it, and storing it responsibly for the times when the sun doesn't shine and the wind doesn't blow.
