| Caster-type Energy Storage Lithium Battery - Parameter Table | |||||
| Model | LXL6-10 | LXL6-12.5 | LXL6-15 | LXL6-16 | LXL6-17.5 |
| Cell Type | Lithium Iron Phosphate (LiFePO4 16S1P) | ||||
| Standard Voltage | 51.2V (DC) | ||||
| Voltage Range | 46V - 58.4V (DC) | ||||
| Cell Capacity | 200Ah | 250Ah | 300Ah | 314Ah | 350Ah |
| Installed Capacity | 10Kwh | 12.5Kwh | 15Kwh | 16Kwh | 17.5Kwh |
| Communication | RS232 / RS485 / CAN / Bluetooth / WIFI | ||||
| BMS Protection | Overcharge, Overdischarge, Short circuit, Overcurrent, Overtemperature protection (PACE Brand) | ||||
| Cycle Life | ≥8,000 cycles @ 85% DOD & 25℃ | ||||
| Warranty | 10 Years | ||||
| Compatible Inverters |
|
||||
| IP Rating | IP54 | ||||

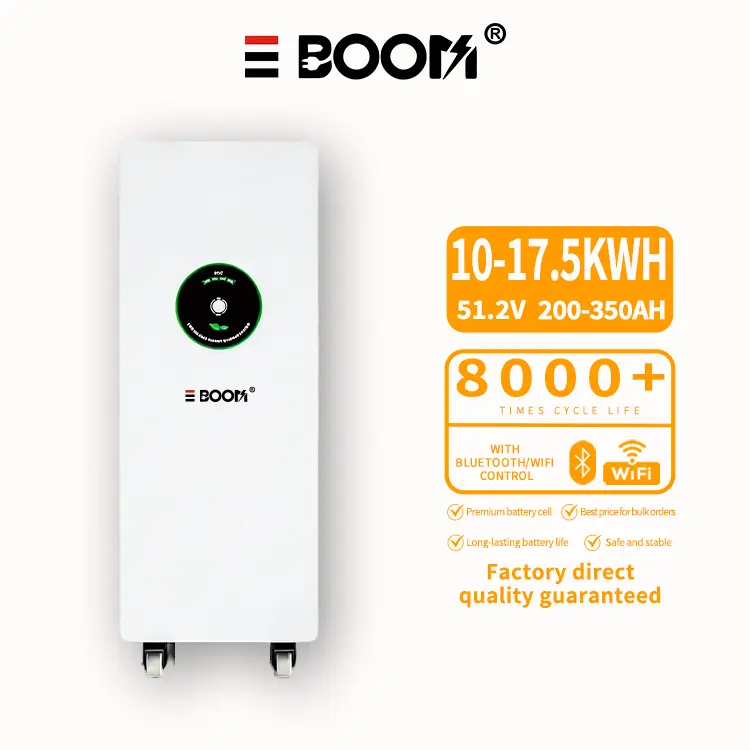

This engineering marvel packs high-density energy storage into a sleek, wall-mounted unit that functions more like a modern appliance than a traditional battery. Designed for urban dwellers and minimalist homes, it eliminates the "industrial" look of energy storage. Whether installed in a laundry room or a hallway, it blends seamlessly with your decor, offering premium energy security without sacrificing valuable square footage. It positions your home energy system as a piece of high-end hardware, combining elegance with industrial-grade performance.
The concept is "Small Footprint, Massive Power," focusing on a sleek, appliance-like design that fits modern home aesthetics while providing high-capacity energy storage.

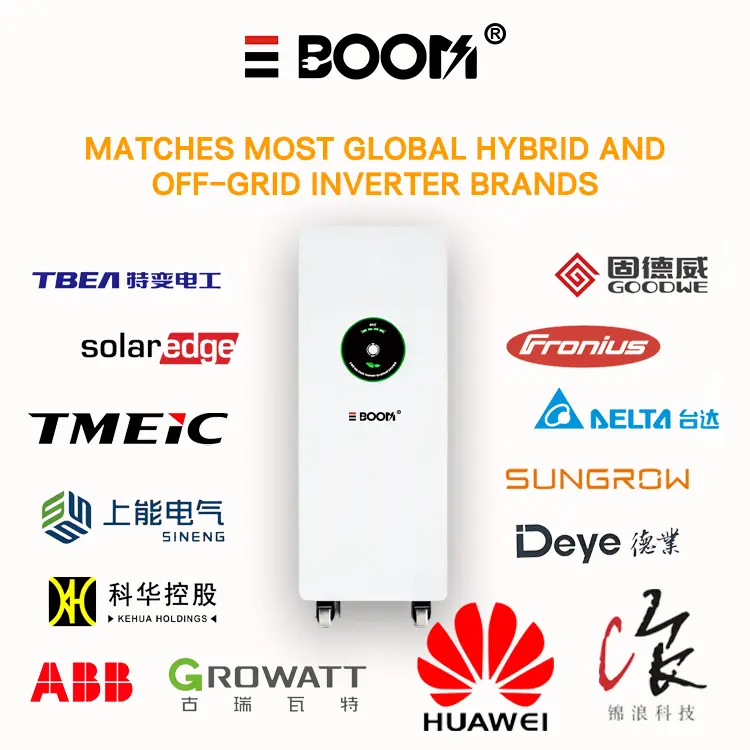

It is compatible with major brands including Sungrow, Solis, Growatt, GoodWe, Deye, Solplanet, Hypontech, MUST Solar, Victron, and many others.
The battery offers a long cycle life of ≥8,000 cycles at 85% DOD and comes with a 10-year warranty for peace of mind.

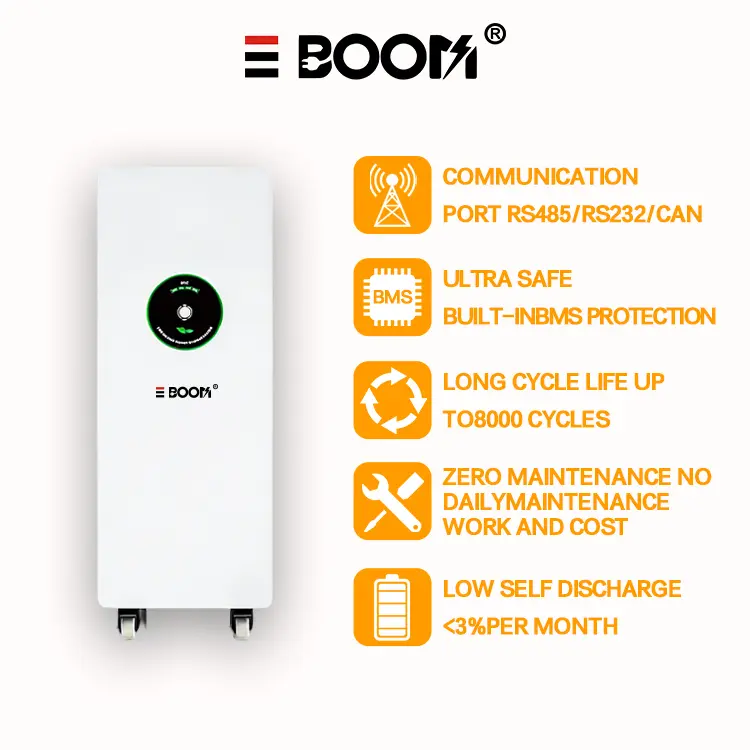

It features a professional PACE BMS that protects against overcharging, over-discharging, short circuits, overcurrent, and extreme temperatures.
The battery has an IP54 rating. Customizations are available for enhanced IP ratings and high-altitude adaptations up to 3000 meters if required.
Yes, the system supports parallel scaling of up to 16 units, allowing you to increase your total storage capacity as your energy needs grow.
